8

SNAP BUSHING

SECURELY

INTO PLACE

2ND

SECURE STUD

WITH

FLANGE HEAD NUT

TILT STUD

AS SHOWN

TO INSTALL

1ST

ROTATE

TO

INTERNAL

STOP

AX05

STEP ONE

STEP TWO

STEP THREE

ALIGN ARROW

WITH SLOT

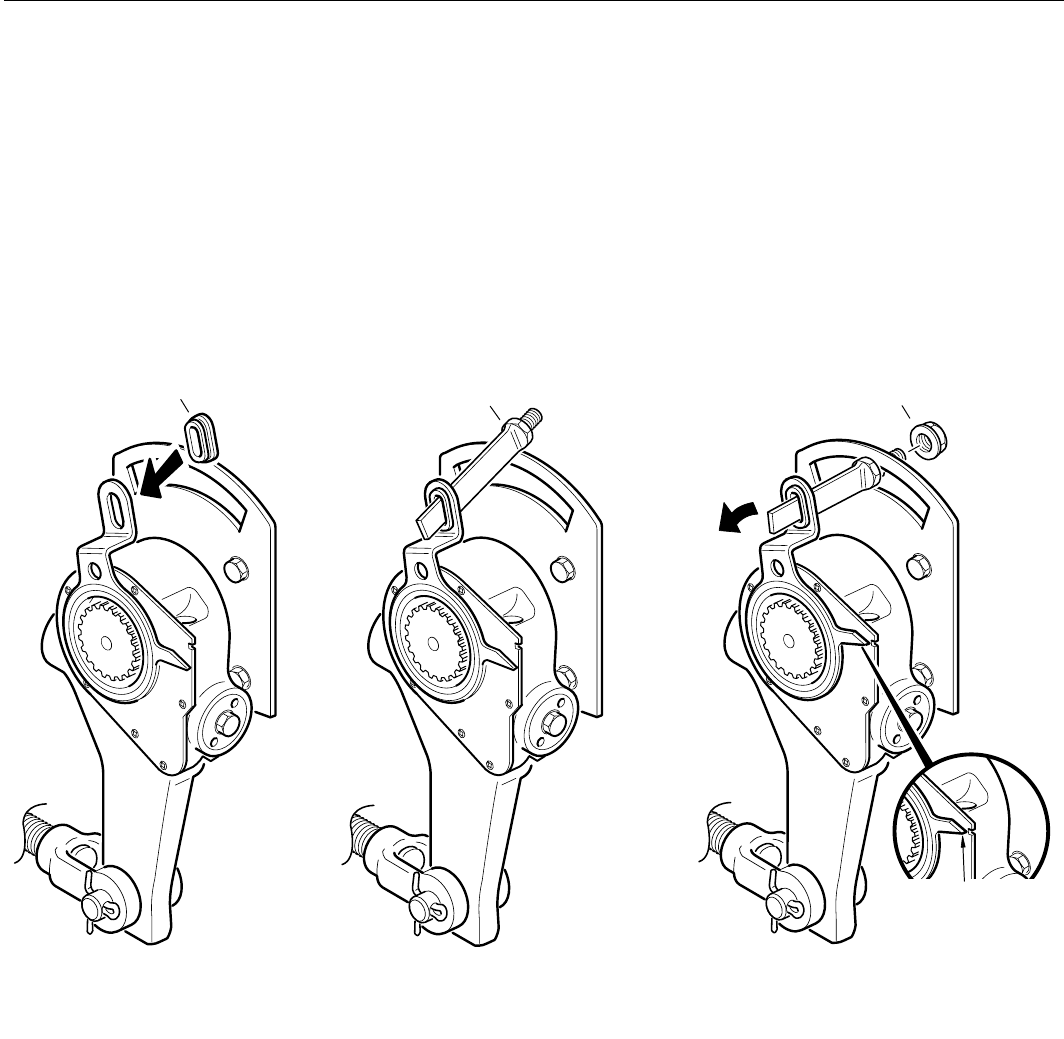

Anchor Stud Installation

Figure 13 Anchor Stud Installation
