ConﬁgurationScreen

TheConﬁguraonscreenprovidesthetechnicianwiththefollowinginformaon:ABSconﬁguraon,LoadandSensor,

TRSP(ifequipped),ADL,AUXI/OandBroadcastopons.

ABSConﬁguraon

ABSConﬁguraonprovidesthetechnicianwiththenumberofsensorsandmodulatorstheECUiscurrently

conﬁguredtoexpect.VehicleDataprovidesthetechnicianwithvehicletype,thenumberofaxles,andtheECU

orientaon.Odometerdisplaystheodometer,tripandserviceodometer.Tiresize[RPM]/ToneRingdisplaysthe

storedresizeandtoneringsize.

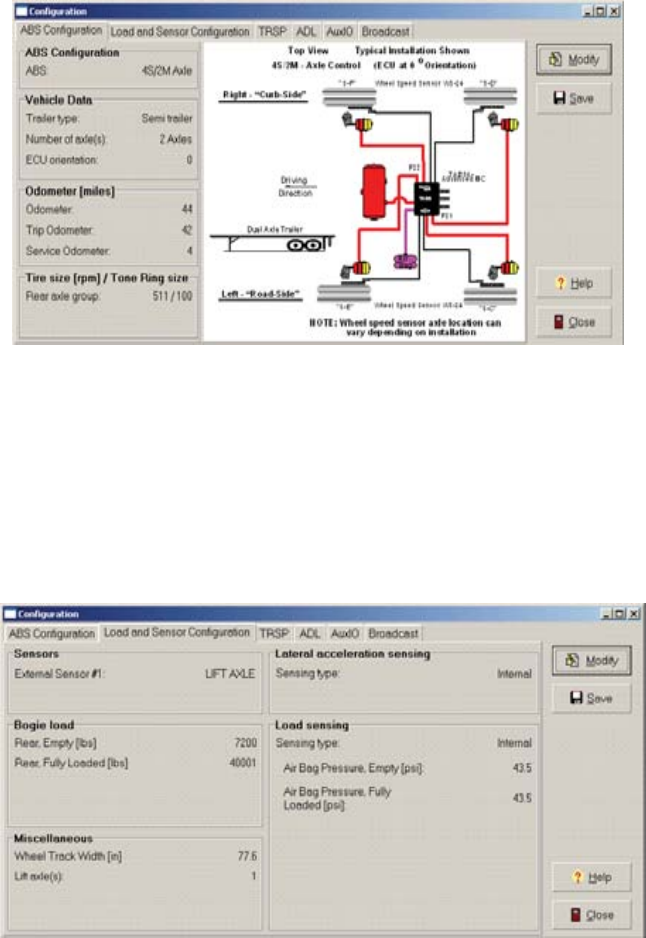

Figure 11

LoadandSensorConﬁguration

TheSensorsfieldprovidesthetechnicianwithinformationonhowtheexternalloadsensor(ifequipped)is

conﬁgured.TheBogieLoadfieldshowstheexpectedweightfortherearaxle−emptyandfullyloaded.The

Miscellaneousfieldshowsthewheeltrackwidthandnumber

ofliftaxles.TheLateralAccelerationSensingfield

provideswhetherthesensingtypeisinternalorexternal(ifequipped).TheLoadSensingfielddisplaysthesensing

type(internalorexternal)anddisplaysthedetectedairbagpressures.

Figure 12
